Solenoid Valves Explained: Working Principles, Valve Types & Failure Prevention

Solenoid Valve Quick Answer

A solenoid valve is an electrically controlled valve that uses a magnetic coil to open, close, or redirect fluid or air flow. They are widely used in pneumatic, hydraulic, water, fuel, and industrial automation systems because they allow fast and reliable flow control with minimal mechanical complexity.

Why Solenoid Valves Matter in Real Industrial Systems

Solenoid valves are everywhere in modern industry, even if most operators rarely notice them until something stops working.

Compressed air systems use them to actuate cylinders. CNC coolant systems rely on them to control fluid delivery in many automated machining setups, especially on modern equipment similar to the systems covered in our CNC basics guide.

Automated car washes, irrigation systems, hydraulic power units, beverage filling equipment, and even medical devices depend on solenoid valves to move fluids accurately and repeatedly.

What makes them valuable is simple:

They convert electrical signals into mechanical flow control almost instantly.

That sounds straightforward on paper. In real workshops, though, valve behavior becomes much more complicated once heat, contamination, vibration, unstable voltage, and pressure fluctuations enter the picture.

A valve that works perfectly on a clean test bench can start chattering, sticking, or overheating surprisingly fast in a dirty production environment. Excessive heat is especially destructive because it gradually changes internal material behavior over time, similar to the thermal damage discussed in our guide on the heat affected zone in flame cutting.

That gap between “theoretical operation” and “real-world behavior” is where most troubleshooting begins.

What Is a Solenoid Valve?

A solenoid valve is an electromechanical valve that controls the flow of liquids or gases using an energized coil.

The valve contains two primary sections:

• the solenoid (electromagnetic coil)
• the valve body (fluid control section)

When electrical current energizes the coil, a magnetic field forms around the internal plunger or armature. That magnetic force moves the plunger and changes the valve position.

Depending on the design, this movement may:

• open flow
• stop flow
• redirect flow
• regulate pressure
• pulse flow volume

Some valves are designed only for simple ON/OFF control. Others can proportionally regulate flow with surprisingly high precision.

How a Solenoid Valve Works

At its core, the operation is fairly simple.

When voltage reaches the coil:

1. The coil generates a magnetic field.
2. The magnetic field pulls or pushes the plunger.
3. The plunger changes the valve position.
4. Fluid flow changes accordingly.

When power is removed:

• the magnetic field collapses
• a spring usually returns the plunger to its default position

The default position depends on valve design.

Some valves stay closed without power. Others stay open.

One common misconception is that the coil itself “moves fluid.” It doesn’t. The coil only creates movement inside the valve body. System pressure and valve geometry do the actual flow work.

That distinction becomes important when diagnosing weak actuation problems.

Low voltage may still partially energize the coil while failing to move the plunger fully. The valve may hum loudly without actually switching states.

You’ll usually notice this first as intermittent operation before total failure occurs.

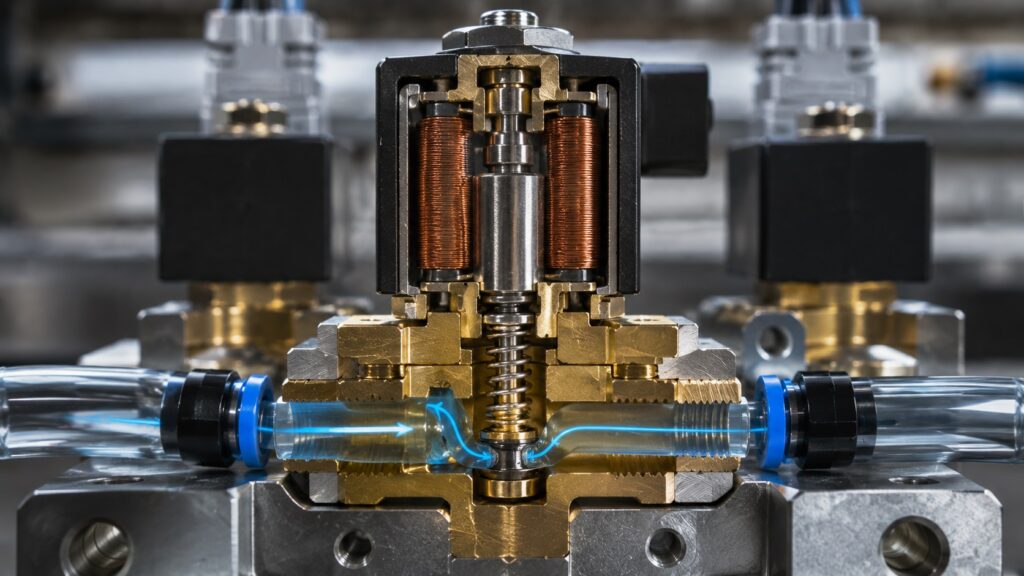

Main Solenoid Valve Components

Component	Function	Common Failure Issue
Coil	Generates magnetic field	Overheating
Plunger	Moves valve mechanism	Sticking from contamination
Valve body	Controls fluid flow	Internal wear
Spring	Returns valve position	Fatigue over time
Seals	Prevent leakage	Chemical degradation
Ports	Direct fluid movement	Flow restriction buildup

Solenoid Coil

The coil generates the magnetic field that drives valve movement.

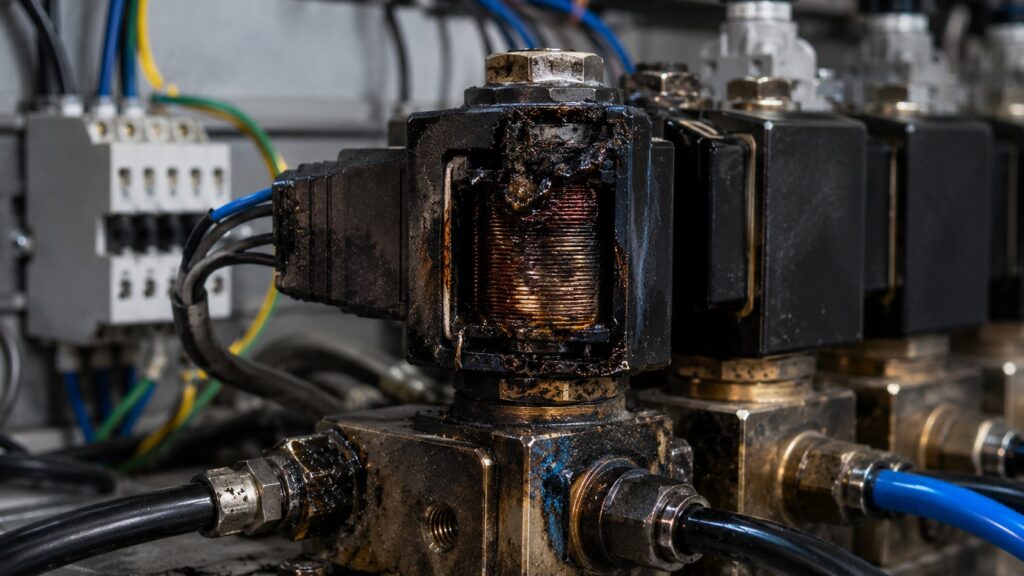

Most industrial coils use insulated copper windings. Coil temperature matters more than many operators realize.

Excessive switching frequency or continuous energization can gradually cook insulation inside the coil. Once insulation starts degrading, resistance changes and coil performance becomes inconsistent.

In production environments, overheating coils often fail slowly rather than instantly.

The valve may begin:

• sticking occasionally
• responding slower
• buzzing excessively
• operating only when cold

That behavior is common in poorly ventilated electrical cabinets.

Plunger or Armature

The plunger is the moving ferromagnetic component inside the coil.

Its movement directly changes valve position.

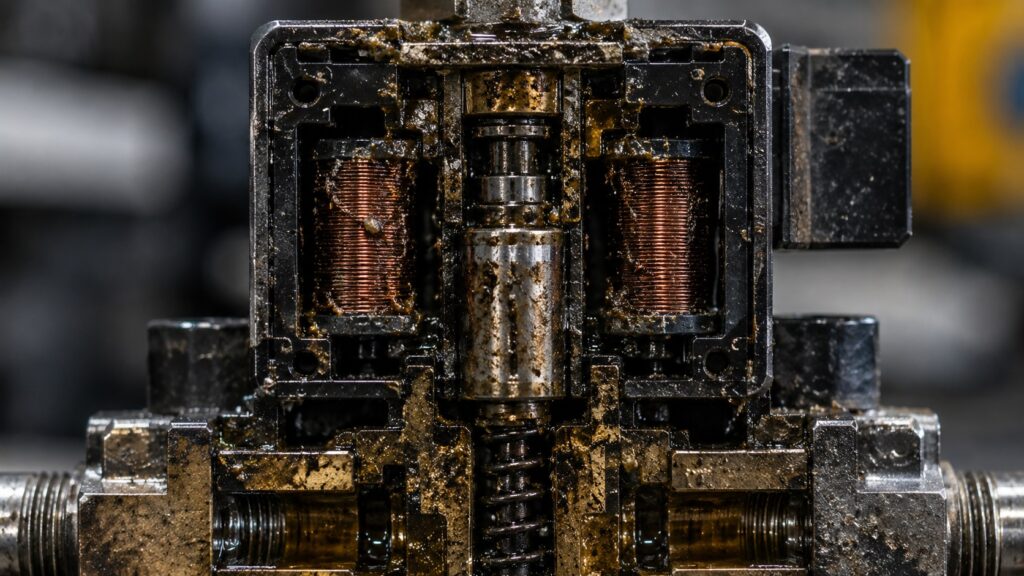

Contamination is one of the biggest enemies here. Dirty compressed air can leave oil residue and fine particulate buildup inside the bore. Eventually the plunger stops moving smoothly.

In pneumatic shops without proper filtration, sticky plungers are extremely common.

Sometimes operators replace the entire valve when the real problem is simply contaminated air.

Valve Body

The valve body contains:

• inlet ports
• outlet ports
• seals
• seats
• internal passages

Body material selection matters.

Brass works well for general compressed air and water systems. Stainless steel is preferred for corrosive chemicals or washdown environments.

Plastic-bodied valves are lightweight and inexpensive, but heat cycling and chemical exposure can shorten their lifespan surprisingly quickly.

Springs

Springs return the valve to its default state when power is removed.

Spring fatigue rarely gets discussed in beginner guides, but high-cycle automation systems absolutely expose weak spring performance over time.

Once spring force changes, valve response consistency starts drifting.

That becomes especially noticeable in fast pneumatic sequencing applications.

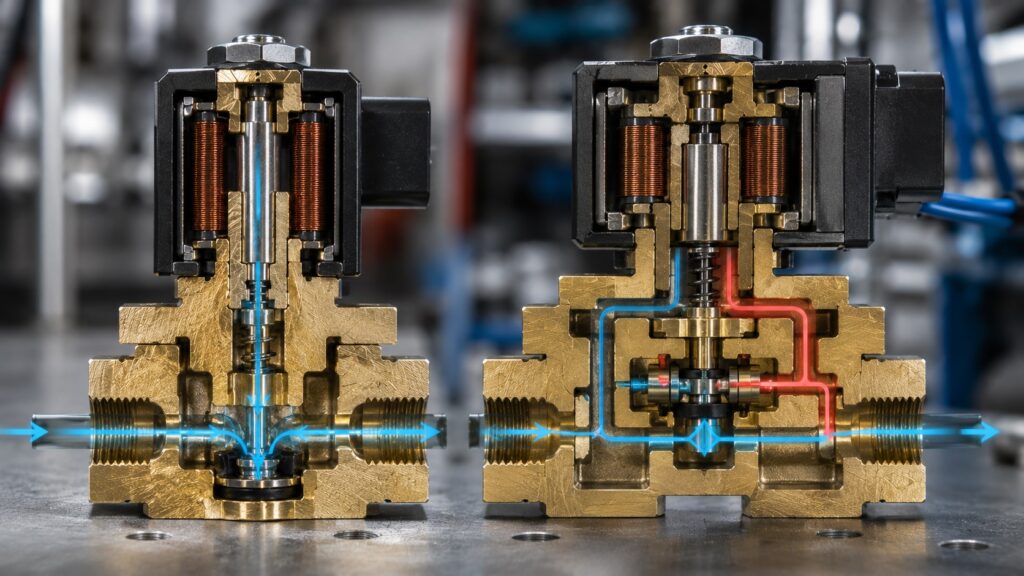

Direct Acting vs Pilot Operated Solenoid Valves

Feature	Direct Acting Valve	Pilot Operated Valve
Operating Principle	Coil directly moves valve seal	System pressure assists valve movement
Minimum Pressure Required	No	Yes
Flow Capacity	Lower	Higher
Response Speed	Faster	Slightly slower
Sensitivity to Contamination	Moderate	Higher
Best For	Small systems and low flow	Large industrial flow systems
Power Consumption	Higher on large valves	Lower
Reliability at Low Pressure	Excellent	Poor
Common Failure Mode	Coil overheating	Pressure differential failure

Direct Acting Solenoid Valves

Direct acting valves use electromagnetic force directly to open or close the valve.

Advantages:

• work at zero pressure
• respond quickly
• simpler internal design
• reliable at low flow

Disadvantages:

• limited flow capacity
• higher power demand on larger valves

These are common in:

• laboratory equipment
• coolant systems
• small pneumatic controls
• dosing systems

Direct acting valves are usually more forgiving in unstable systems. That matters in real production environments where vibration, inconsistent pressure, and changing machine loads can create the same kind of instability often seen during aggressive trochoidal and peel milling operations.

Pilot Operated Solenoid Valves

Pilot-operated valves use system pressure to help move the main valve mechanism.

The solenoid controls only a smaller pilot section.

Advantages:

• much higher flow capacity
• lower coil power requirements
• efficient for large systems

Disadvantages:

• require minimum pressure differential
• more sensitive to contamination
• slower response in some situations

This is where many field problems occur.

A pilot-operated valve may appear electrically functional while failing mechanically because pressure differential is insufficient.

Operators sometimes waste hours checking wiring when the real issue is inadequate upstream pressure.

Cold startup conditions expose this problem frequently in compressed air systems.

Normally Closed vs Normally Open Valves

Normally Closed (NC)

The valve stays closed without power.

When energized:

• the valve opens

These are the most common industrial configuration because they fail-safe by stopping flow during power loss.

Normally Open (NO)

The valve stays open without power.

When energized:

• the valve closes

These are often used when continuous flow is required most of the time.

Choosing between NC and NO isn’t only about functionality.

It also affects:

• heat generation
• power consumption
• coil lifespan

A continuously energized coil naturally runs hotter.

In many production environments, selecting the opposite default state can noticeably extend valve life.

Common Solenoid Valve Types

2-Way Solenoid Valves

Simple ON/OFF flow control.

One inlet and one outlet.

Very common for:

• water systems
• air systems
• coolant delivery
• fuel control

3-Way Solenoid Valves

Used to redirect flow between different paths.

Common in:

• pneumatic actuators
• cylinder control
• venting systems

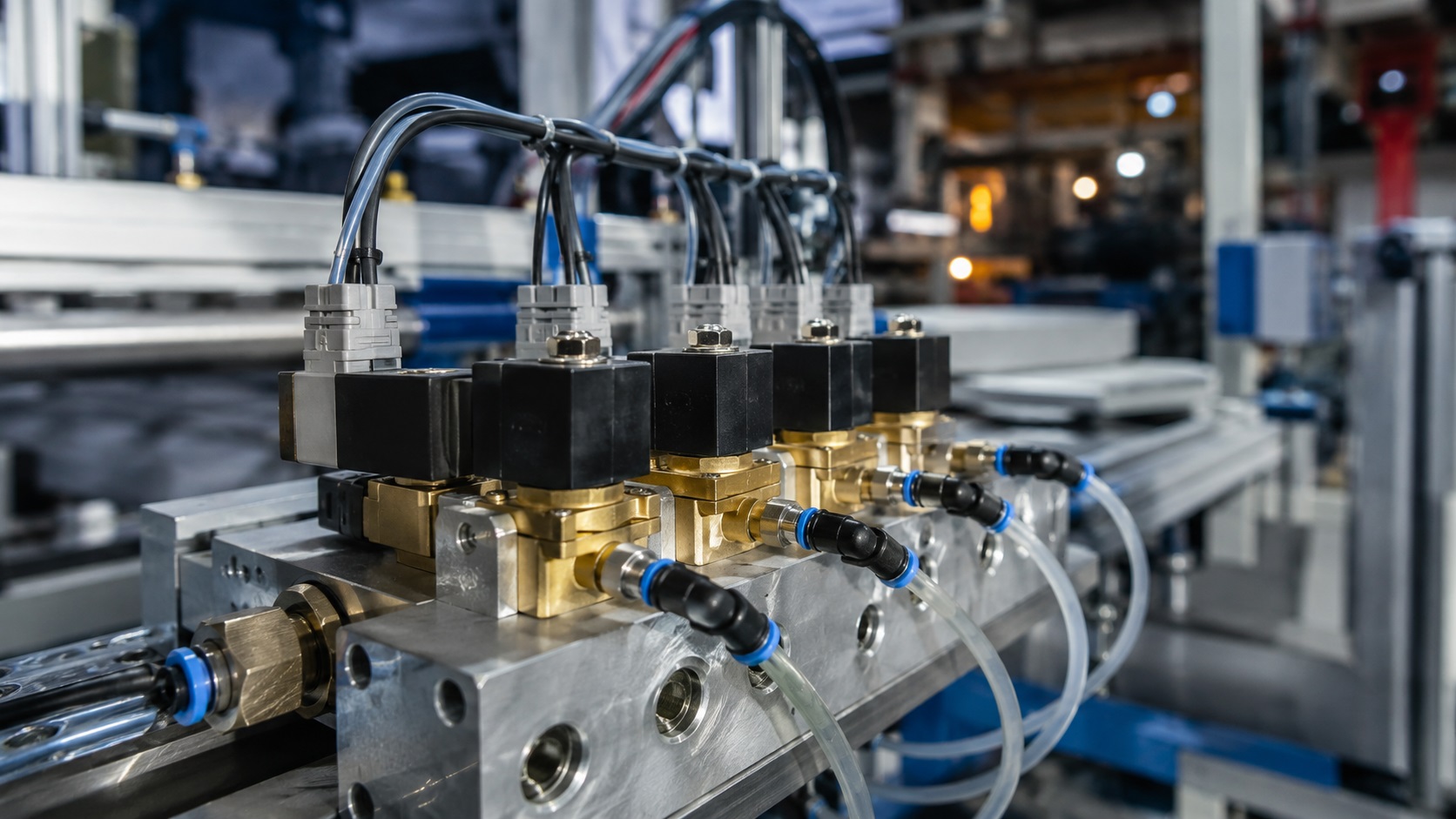

These are extremely common in factory automation.

4-Way Solenoid Valves

Typically used with double-acting pneumatic cylinders.

They alternate pressure between actuator ports to reverse cylinder motion.

Incorrect port plumbing here is surprisingly common during maintenance work.

Pneumatic vs Hydraulic Solenoid Valves

Pneumatic Solenoid Valves

Designed for compressed air systems.

Usually:

• faster cycling
• lighter internal loads
• lower pressure ranges

Compressed air contamination causes most failures.

Water and oil buildup inside air lines gradually create sticky internal movement.

Some machinists underestimate how destructive wet compressed air becomes over time.

Hydraulic Solenoid Valves

Designed for oil-based hydraulic systems.

Usually:

• higher pressure capacity
• heavier construction
• slower but stronger actuation

Hydraulic systems expose different problems:

• heat buildup
• seal degradation
• varnish deposits
• pressure spikes

Hydraulic valve chatter can become extremely destructive if ignored.

Common Solenoid Valve Problems and Failure Modes

Coil Overheating

One of the most common industrial failures.

Causes:

• excessive duty cycle
• incorrect voltage
• poor ventilation
• over-energization
• high ambient temperatures

Overheated coils often smell slightly burnt before failing completely. In severe cases, nearby metal surfaces may even begin showing heat discoloration similar to the oxidation colors explained in why steel turns blue when heated.

That odor is usually insulation breakdown beginning internally.

Valve Chatter and Buzzing

Valve chatter creates rapid clicking or buzzing.

Common causes:

• unstable voltage
• weak coils
• inadequate pressure
• contaminated internals
• worn springs

Chatter accelerates wear very quickly.

What sounds like a “minor noise” can destroy seats and seals over time.

Water Hammer

Fast-closing valves can create sudden pressure spikes.

This becomes especially problematic in:

• long piping runs
• high-flow liquid systems
• irrigation systems

Repeated water hammer gradually damages seals and valve seats. Over time, impact-related wear can alter surface condition and material properties in ways that resemble the progressive damage patterns discussed in how to check the hardness of metal.

You’ll often notice pipe vibration before visible leakage appears.

Contamination and Sticking

Dirty systems kill valves.

Compressed air systems without proper filtration eventually develop:

• sticky plungers
• slow response
• intermittent operation
• internal scoring

Fine contamination is usually worse than large debris because operators rarely notice it early.

Incorrect Voltage Problems

Undervoltage is extremely common.

A coil may partially energize while lacking enough force to move fully.

Symptoms:

• humming
• delayed actuation
• overheating
• inconsistent switching

Long cable runs sometimes create enough voltage drop to trigger these problems intermittently.

Those are frustrating faults because the valve may test perfectly when disconnected from the machine.

Problem	Common Cause	Early Warning Signs
Valve buzzing	Low voltage	Weak clicking sound
Slow response	Internal contamination	Delayed actuation
Coil overheating	Excessive duty cycle	Burnt smell or excessive heat
Intermittent operation	Loose wiring or unstable voltage	Random switching failures
Valve sticking	Dirty compressed air	Inconsistent movement
Leakage	Worn seals or water hammer	Dripping or pressure loss
Failure to actuate	Insufficient pressure differential	Coil energizes but valve does not move

How to Troubleshoot a Solenoid Valve

Experienced technicians usually diagnose valves in a specific order. That same step-by-step troubleshooting mindset is also critical when tracking down recurring CNC programming errors and other hard-to-isolate production problems.

Not because manuals say so — because it saves time.

Step 1 — Listen

A healthy valve usually has a sharp and clean actuation click.

Weak buzzing often indicates:

• voltage problems
• partial movement
• contamination

Step 2 — Check Coil Temperature

Overheated coils frequently point toward:

• incorrect duty cycle
• constant energization
• electrical overload

Some heat is normal.

Excessive heat is not.

Step 3 — Verify Pressure Conditions

Pilot-operated valves especially depend on proper pressure differential.

No pressure = no proper actuation.

Step 4 — Inspect Contamination

This gets overlooked constantly.

Dirty air and contaminated fluids create a huge percentage of “electrical” valve complaints.

Step 5 — Check Seal Compatibility

Incorrect seals swell over time.

Chemical incompatibility may not fail immediately. Sometimes valves operate normally for weeks before internal drag begins increasing.

That delayed failure pattern confuses many maintenance teams.

How to Choose the Right Solenoid Valve

Application	Recommended Valve Type	Important Consideration
Pneumatic automation	3-way or 4-way pneumatic valve	Air filtration quality
Water control systems	Normally closed 2-way valve	Water hammer resistance
Hydraulic machinery	Pilot-operated hydraulic valve	Pressure rating
Chemical processing	Stainless steel valve	Seal compatibility
Coolant systems	Direct acting valve	Contamination resistance
High-cycle automation	Continuous-duty rated valve	Coil heat management
Fail-safe systems	Normally closed valve	Power loss behavior

Proper valve selection depends on much more than port size.

You need to consider:

• fluid type
• pressure range
• temperature
• duty cycle
• response speed
• contamination level
• voltage availability
• fail-safe behavior

A valve that works perfectly in a clean laboratory may fail quickly in a dusty fabrication environment.

That’s why industrial environments usually favor conservative valve sizing and simpler configurations.

Complex valves often perform beautifully until maintenance quality drops.

Common Solenoid Valve Selection Mistakes

Oversizing the Valve

Bigger is not always better.

Oversized valves can reduce control precision and create unstable flow behavior.

Ignoring Duty Cycle

Some coils are not designed for continuous energization.

Continuous duty applications need properly rated coils.

Poor Air Filtration

Many pneumatic valve failures are actually filtration failures.

Using Pilot-Operated Valves at Low Pressure

A very common mistake.

Pilot-operated valves need pressure differential to function correctly.

Ignoring Environmental Heat

Electrical cabinets with poor airflow destroy coils faster than many operators expect.

Frequently Asked Questions About Solenoid Valves

Why Solenoid Valve Reliability Depends on System Conditions

Solenoid valves seem simple until you start troubleshooting real industrial systems.

Most failures are not dramatic electrical burnouts. They’re gradual operational problems caused by contamination, unstable pressure, incorrect voltage, excessive heat, or poor system design decisions.

That’s why experienced technicians rarely blame the valve immediately.

They look at the entire system first:

• air quality
• pressure stability
• temperature
• duty cycle
• wiring quality
• maintenance habits

A properly selected solenoid valve can run reliably for years.

A poorly matched valve may begin causing intermittent problems almost immediately — even if the valve itself is technically “working.”

That distinction matters a lot in production environments where small reliability issues quickly become downtime problems.
